TL;DR

• Common dirt bike spark plug symptoms include hard starting,misfires, power loss, sputtering, and backfiring — each pointing to a different root cause.
• Spark plug color is the fastest diagnostic tool: brown/tan = healthy, black = running rich, white/grey = running lean.
• Fouling (carbon, oil, or fuel) is the leading cause of spark plug failure and is usually fixable with cleaning and jetting adjustments.
• A plug that is too hot risks pre-ignition; a plug that is too cold fouls easily — choosing the correct heat range prevents both problems.
• Most spark plug issues can be resolved at home with a wire brush, carb cleaner, feeler gauge, and 15 minutes of work.

This article aims to explain the dirt bike spark plug symptoms and how to fix common problems. This article is a must-read for every rider who wants to identify engine issues and improve the bike performance.

What Does a Dirt Bike Spark Plug Actually Do?

A dirt bike spark plug ignites the compressed air-fuel mixture inside the cylinder — it is the single component that starts every power stroke.

If the spark is weak, combustion will not happen efficiently, which can lead to common dirt bike spark plug symptoms such as misfire, overheating, poor throttle response, and may lead to dirt bike running rich symptoms due to unburnt fuel.

Key Functional Role

A spark plug works by converting electrical energy from the ignition coil into a high-voltage spark. The spark plug directly controls how effectively the fuel is burned.

Why Spark Timing Matters

Spark timing is critical as ignition must happen at the exact right moment in the engine cycle. If the timing is too advanced, the mixture ignites before the piston reaches the top, causing knocking or pre-ignition.

If the timing is too late, the mixture burns slowly, reducing power and increasing engine temperature.

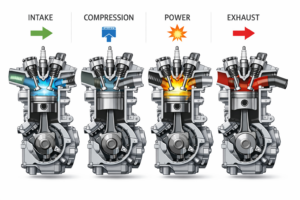

Engine Cycle and the Spark Plug Role

In a typical 4-stroke dirt bike engine:

• Consumo: Air and fuel enter the cylinder
• Compression: The piston compresses the mixture
• Spark: The spark plug ignites the mixture at peak compression
• Power: Combustion forces the piston downward
• Escape: Burnt gases exit the cylinder

The spark plug acts as the trigger point of the entire cycle. If the spark plug fails at this stage, the engine will produce no power.

Dirt Bike Spark Plug Symptoms, Causes, and Fixes

The six most common symptoms of a failing dirt bike spark plug are: won’t start, hard starting, misfire at idle, bogging on acceleration, power loss, and backfiring — all of which can be traced to spark quality, plug condition, or fuel mixture.

Dirt Bike Won’t Start

The most common symptom of a failing spark plug is that the engine cranks normally but does not start or fire.

Causes:

The main causes include no spark from the plug, dirt bike spark plug fouling, and damaged or worn electrodes.

Solution:

1. Clean or replace the spark plug
2. Inspect the ignition coil, CDI unit, and wiring connections

Regular inspection of these components helps ensure reliable starting performance and prevents repeated ignition failure.

Arranque difícil

The symptom of a dirt bike spark plug issue is that the engine becomes hard to start and only starts after multiple kicks or repeated attempts.

Causes:

Weak spark output, an incorrect spark plug gap setting, or carbon deposits on the electrodes mainly cause this issue.

Solution:
Clean minor deposits if present, or replace the spark plug if performance does not improve.

Dirt Bike Misfire At Idle

Another symptom of a faulty dirt bike spark plug is that the engine runs unevenly at idle or randomly cuts out.

Causes:

A fouled spark plug, a weak ignition system, or an incorrect spark plug heat range mainly cause this.

Solution:

1. Replace the spark plug if it is damaged or fouled
2. Inspect the ignition coil and CDI system
3. Ensure the correct heat range spark plug is installed

Bogging When Accelerating

When throttle response becomes delayed or sluggish during acceleration, it can indicate a dirt bike spark plug issue.

Causes:

This symptom is mainly caused by an incorrect fuel mixture (rich or lean condition) or a weak/unstable spark.

Solution:

• Adjust carburetor jetting
• Inspect the spark plug for fuel or carbon buildup
• Clean or replace the spark plug if necessary

Loss of Power

One of the most common dirt bike spark plug symptoms is a noticeable reduction in power, acceleration, and overall performance.

Causes:
This is mainly caused by incomplete combustion or inconsistent spark delivery.

Solution:

• Replace the spark plug
• Check and correct air-fuel ratio settings
• Inspect the fuel delivery system

Popping Sound (Sputtering and Backfiring)

Another symptom of a faulty spark plug is a popping sound from the exhaust, along with uneven engine running. This is also known as sputtering and backfiring.

Causes:
This condition is mostly caused by a lean fuel mixture or delayed combustion in the exhaust system.

Solution:

• Check for air leaks in the intake system
• Adjust fuel settings and carburetor jetting
• Inspect the spark plug for signs of a lean condition

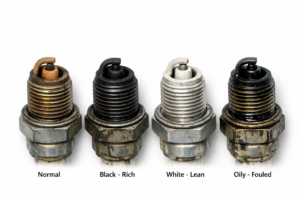

Spark Plug Visual Diagnosis (Color and Condition System)

Reading the color and condition of a used spark plug is the fastest way to diagnose whether a dirt bike engine is running rich, lean, or has an oil leak.

Color	Condición	Meaning
Brown / Tan	Normal	Optimal combustion
Black (Dry)	Rich	Too much fuel
Black (Wet)	Fouled	Fuel or oil contamination
White/Gray	Lean	Too much air
Oily	Oil Issue	Internal engine problem

Types of Fouling

Spark plug fouling occurs when deposits build up on the electrode, which prevents proper spark formation. There are different types of fouling, including:

Carbon Fouling

Carbon fouling appears as a dry and black deposit on the spark plug tip. Carbon fouling is mainly caused by a rich air-fuel mixture. The effect of carbon fouling is that it results in a weak spark, hard starting, and poor throttle response.

Oil Fouling

Oil fouling is identified as a wet, oily coating on the spark plug surface. Oil fouling is mainly caused when engine oil enters the combustion chamber.

The effect of oil fouling is that it causes continuous misfiring, excess smoke from the exhaust, and poor engine performance.

Fuel Fouling

Fuel fouling is diagnosed as a wet spark plug covered with unburned gasoline. Fuel fouling occurs when excessive fuel is supplied or when ignition is weak. Fuel fouling causes engine flooding, contributes to a no-start condition, and results in a strong fuel smell.

Running Rich vs Running Lean

Understanding the fuel mixture condition is important as it directly affects spark plug health and engine performance.

Dimensión	Running Rich	Running Lean
Spark plug color	Black (dry/wet)	White / Light grey
Escape	Black smoke, strong fuel smell	Clean but may backfire on deceleration
Idle behavior	Rough, may stall	High or unstable idle
Engine temp	Normal or below normal	Overheating risk
Common causes	Dirty air filter, rich jetting, stuck choke	Air leak, lean jetting, fuel blockage
Risk if ignored	Fouled plug, carbon buildup, poor fuel economy	Engine overheating, piston/cylinder damage

How to Read a Spark Plug?

One of the most efficient diagnostic methods for identifying engine health is reading the spark plug correctly. To read the spark plug on a dirt bike correctly, one needs to follow the step-by-step procedure mentioned below.

Step 1: Run the engine at optimal temperature to ensure that the spark plug reflects real combustion conditions.

Step 2: Allow the engine to cool slightly, then remove the spark plug carefully to avoid damage.

Step 3: Inspect the electrode color and condition. Look for brown, black, white, wet, or oily deposits.

Step 4: Check for moisture or carbon buildup. Wet fuel indicates flooding, whereas oil indicates internal leakage.

Step 5: Compare the result with a spark plug color chart reference to determine whether the engine issue is rich or lean.

How to Diagnose a Spark Plug On a Dirt Bike?

To diagnose a spark plug on a bicicleta sucia, start by checking for spark. To do this, remove the spark plug and connect it to the ignition cap, ground it against the engine, and kick or crank the bike.

Secondly, inspect the spark plug condition visually. Look for signs such as carbon buildup, fuel fouling, or abnormal color changes.

Third, measure and adjust the spark plug gap using a feeler gauge. An incorrect gap can cause weak ignition, misfires, or starting issues.

Finally, inspect ignition components such as the ignition coil, CDI unit, and wiring connections.

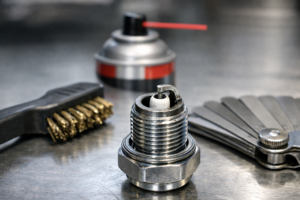

How to Clean a Dirt Bike Spark Plug?

Cleaning a fouled dirt bike spark plug takes about 10–15 minutes and requires only a spark plug socket, a wire brush, carb cleaner, and a feeler gauge:

Step 1: Remove The Spark Plug

Carefully remove the spark plug using a proper socket tool to avoid damage to the threads.

Step 2: Clean With A Wire Brush

Gently scrub the electrode area to remove carbon deposits and dirt buildup. Always use a wire brush or a dedicated spark plug cleaner for best results.

Step 3: Use Spray Carb Cleaner

Next, use a carb cleaner or a small amount of fuel to dissolve stubborn deposits and improve cleaning efficiency.

Step 4: Dry The Spark Plug

Make sure to dry the spark plug completely before reinstalling it to avoid misfires or weak ignition.

Step 5: Re-Gap If Needed

Check the spark plug gap using a feeler gauge and adjust it according to the manufacturer’s specification.

What Is The Dirt Bike Spark Plug Heat Range? Why Does It Matter?

The spark plug heat range determines how fast heat dissipates from the firing tip — choosing the wrong range causes either fouling (too cold) or pre-ignition (too hot). A correct heat range is important as it directly impacts combustion quality and engine performance in a dirt bike.

Types of Spark Plug Heat Range

There are different spark plug heat ranges, including hot and cold plugs:

Hot Plug

A hot plug retains more heat at the firing tip. This helps burn off carbon deposits and reduces the risk of dirt bike spark plug fouling.

Cold Plug

A cold plug transfers heat away quickly into the cylinder head. This prevents overheating and is commonly used in high-performance and high-RPM engines.

Why is Heat Range Important?

The heat range ensures that the spark plug operates within an optimal temperature window. If the plug is too hot or too cold, combustion efficiency drops and engine issues begin to appear.

Preguntas frecuentes

How do you know if your dirt bike spark plug is bad?

Hard starting, misfiring, poor throttle response, and loss of power all indicate that the spark plug is bad.

When Should You Replace a Dirt Bike Spark Plug?

A dirt bike spark plug should be replaced upon noticing heavy carbon buildup, oil fouling, worn electrodes, or when hard starting and misfires continue even after cleaning.

Does a black spark plug mean rich or lean?

A black spark plug usually indicates a rich condition, where the engine is receiving more fuel than air.

How often should you change a spark plug on a dirt bike?

For recreational riders, replace the spark plug every 20–30 riding hours or at least once per season. Race-level riders should inspect the plug after every race day and replace it every 10–15 hours. If the plug shows heavy fouling, electrode erosion, or cracked porcelain, replace it immediately regardless of hours.

Can a bad spark plug cause a dirt bike not to start?

Yes. A fouled, cracked, or worn spark plug is one of the most common reasons a dirt bike won’t start. If the plug cannot produce a strong, consistent spark, the air-fuel mixture will not ignite. Pull the plug, inspect it visually, and test for spark before investigating other ignition components.
