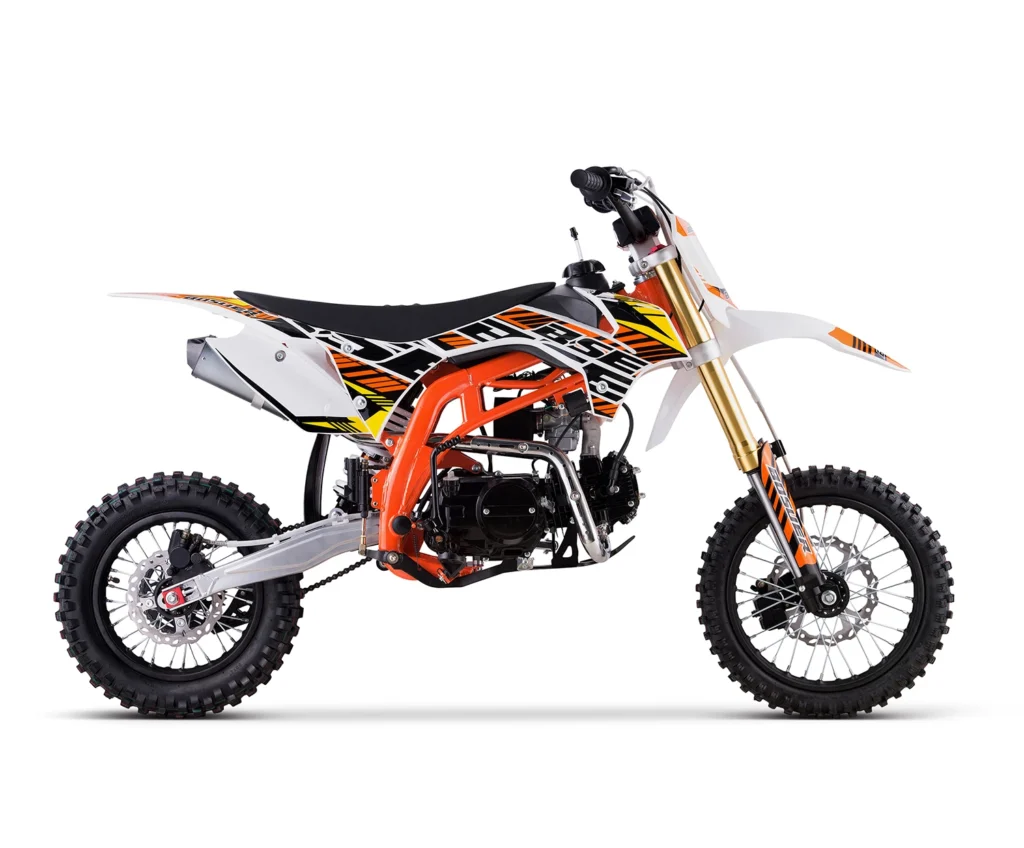

Bosuer PH05B is a 125cc off-road motorcycle with an air-cooled engine. It is built for simple use and regular riding on dirt roads and uneven ground. The engine setup is straightforward, making maintenance easy and cost controllable.
With a lightweight body around 75kg, the PH05B is easy to handle at low speeds and in off-road conditions. The steel frame and suspension are designed for daily riding rather than occasional use. Fuel capacity is sufficient for normal off-road sessions and training use.
This model is suitable for entry-level off-road riding, training programs, and B2B supply. It focuses on function and durability without unnecessary features.
| Engine: | 125, air cooled, 4-gear, 6,5kw/7000rpm, kick start |
| Carburetor: | PZ26 |
| Gear ratio: | 420-15/41 |
| Fuel tank: | 5.2L |
| Seat height: | 790mm |
| Wheel base: | 1220mm |
| Clearance: | 265mm |
| Weight: | 75KG |
| Frame: | steel frame |
| Swing Arm: | steel |
| Triple clamp: | forged alloy |
| Suspension: | Up-side-down fork, 45/48-735mm, non-adjustable, rear shock: 335mm non-adjustable |
| Handle bar: | fat steel |
| Wheel: | alloy rim, size:1.60-14/1.85-12,tire: front: 60/100-14 rear: 80/100-12 |
| Loading Qty: | 20FT 63PCS 40HQ 172PCS |
